This AI¹-enabled solution helps improve acquisition accuracy for upright chest X-ray exams through continual quality analysis and feedback about position accuracy, given at the point of image acquisition. The continuous feedback provides X-ray technologists with consistent, immediate visual feedback for every PA chest radiograph and can help improving performance of well-educated X-ray technologists through positive reinforcement. Radiology Smart Assistant² seamlessly and intuitively integrates into existing workflow to improve efficiency for fast procedure time.
Features

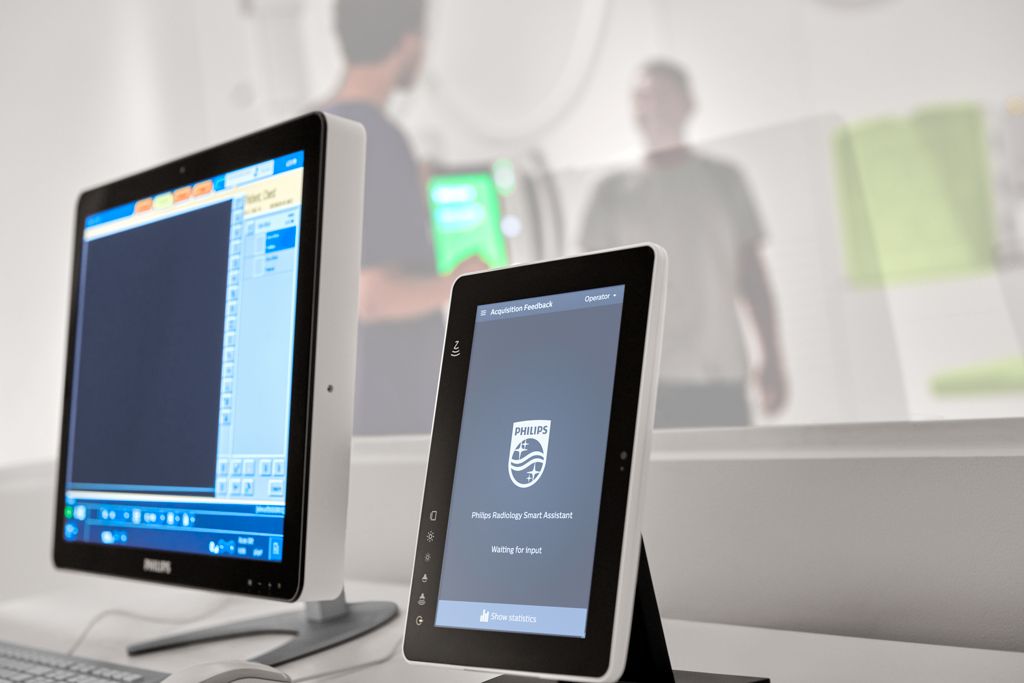

Integrates into existing workflow

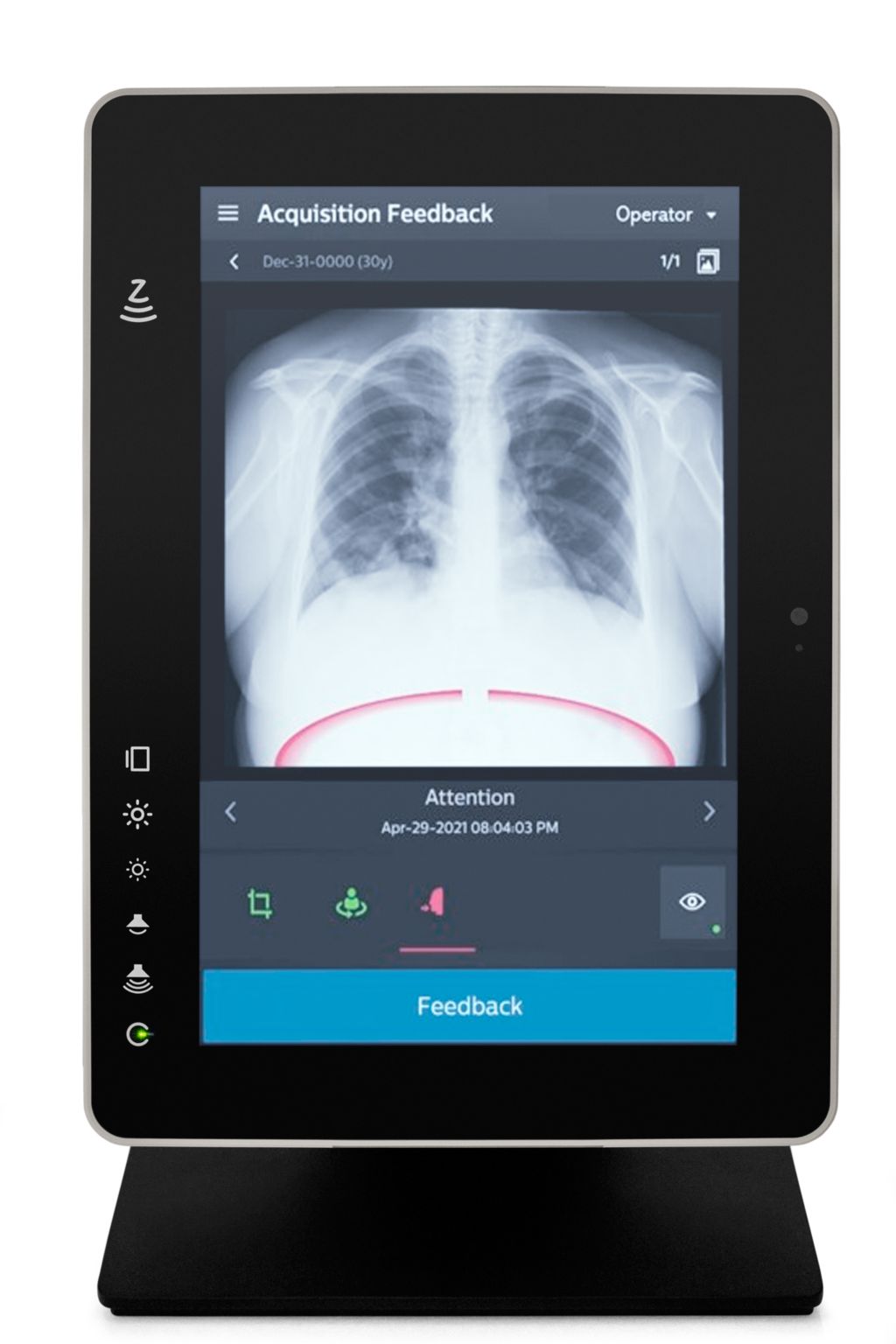

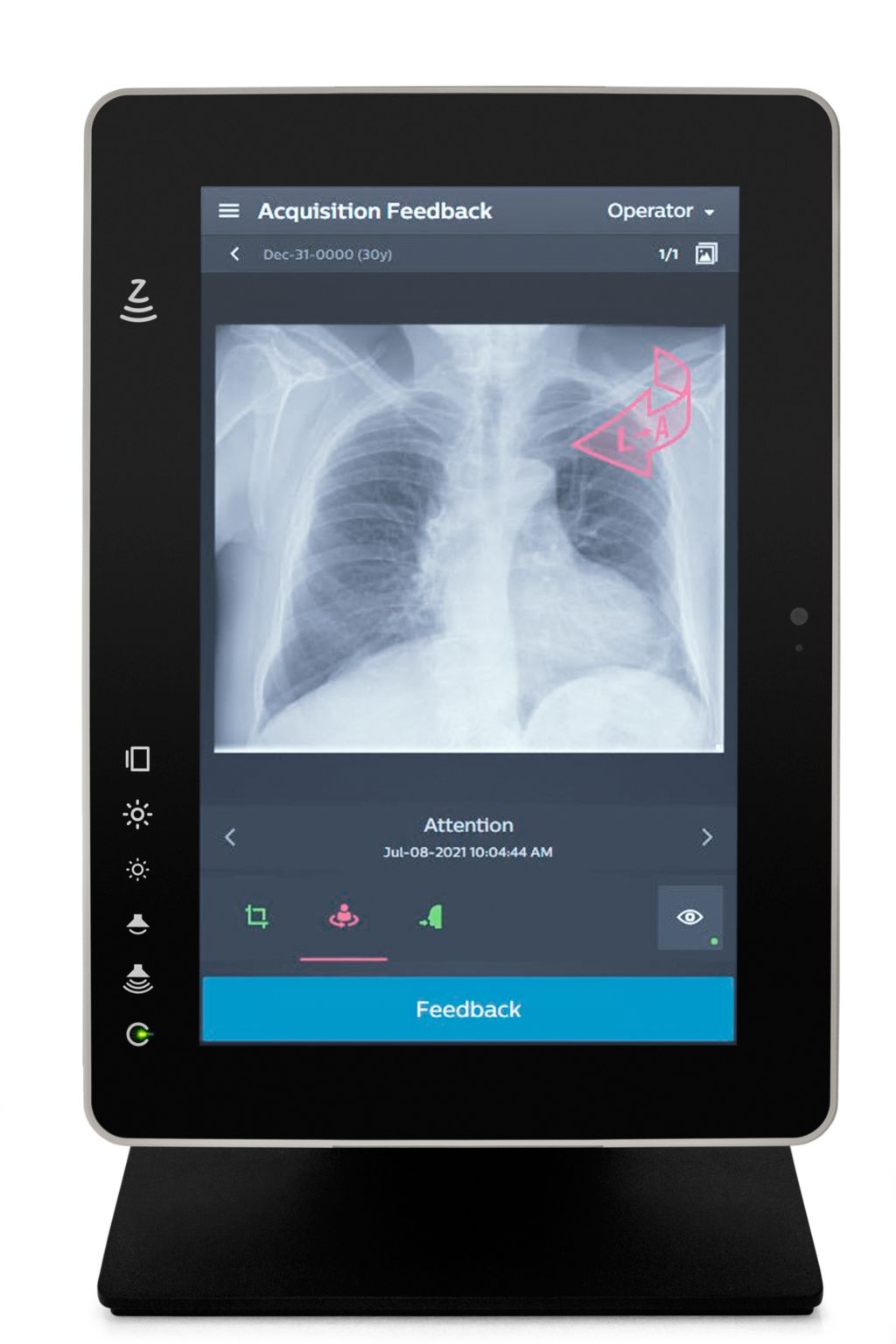

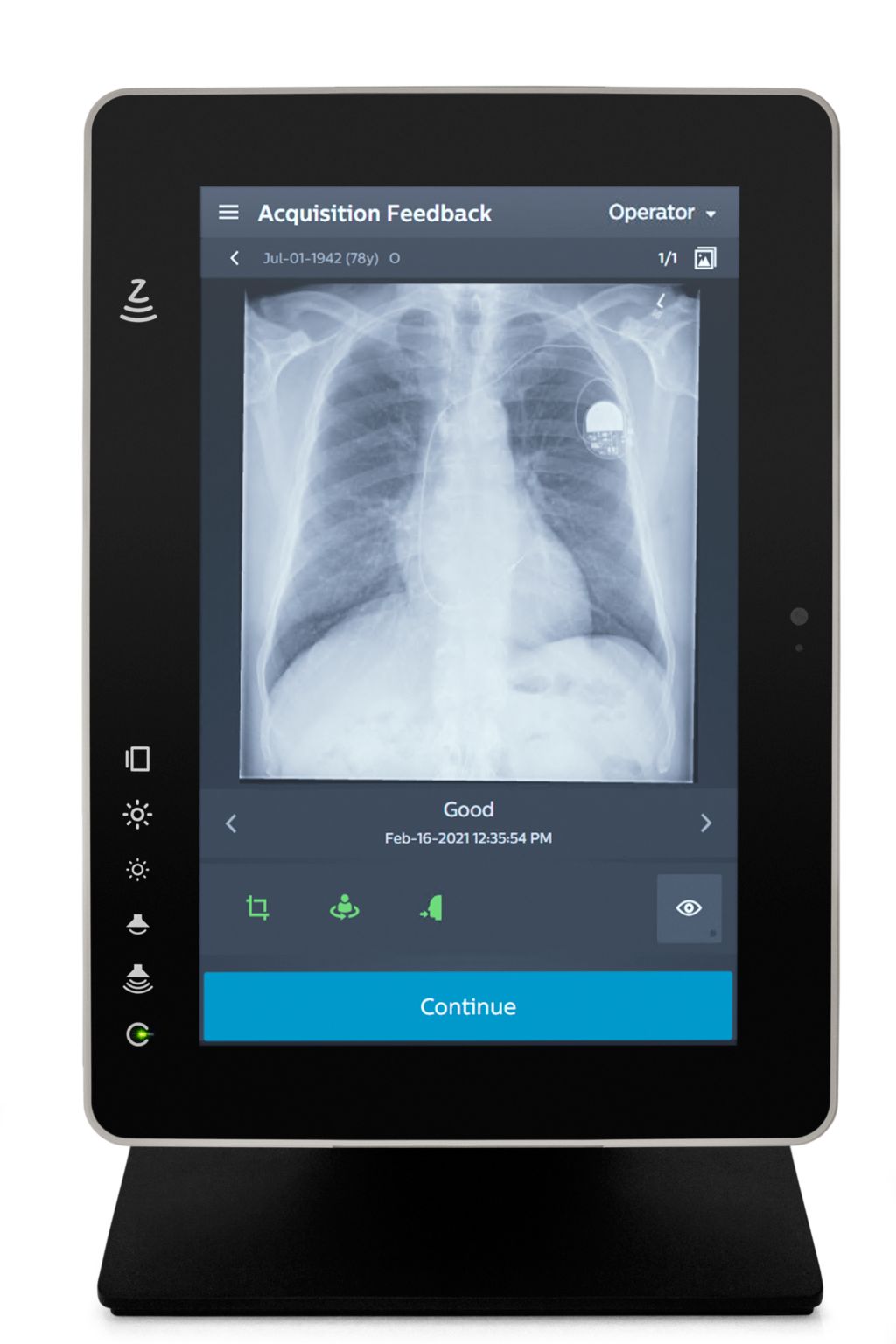

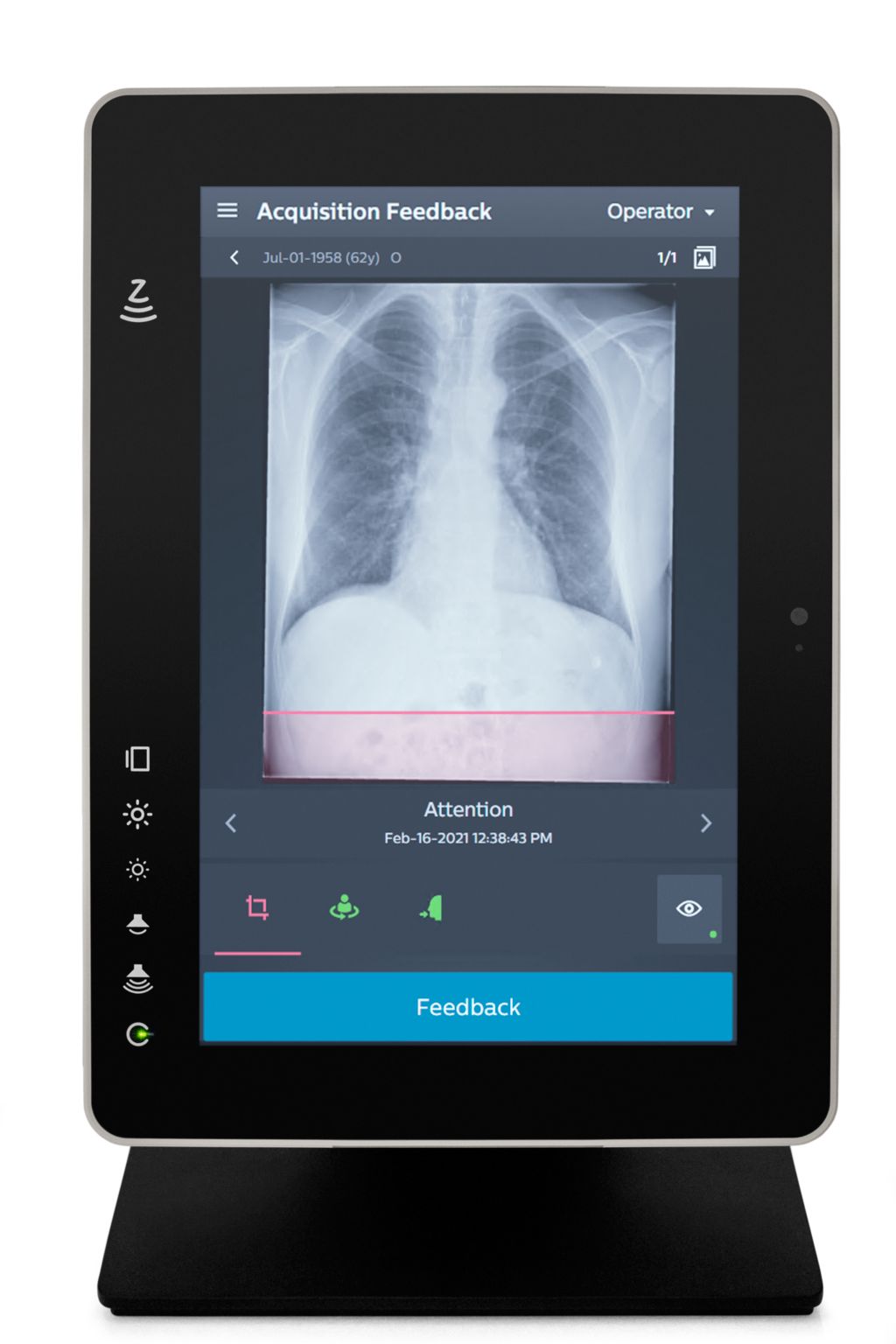

The system provides immediate feedback for every PA chest radiograph about positioning accuracy at the point of acquisition. It offers seamless workflow integration without change or interruption to the existing digital X-ray workflow.

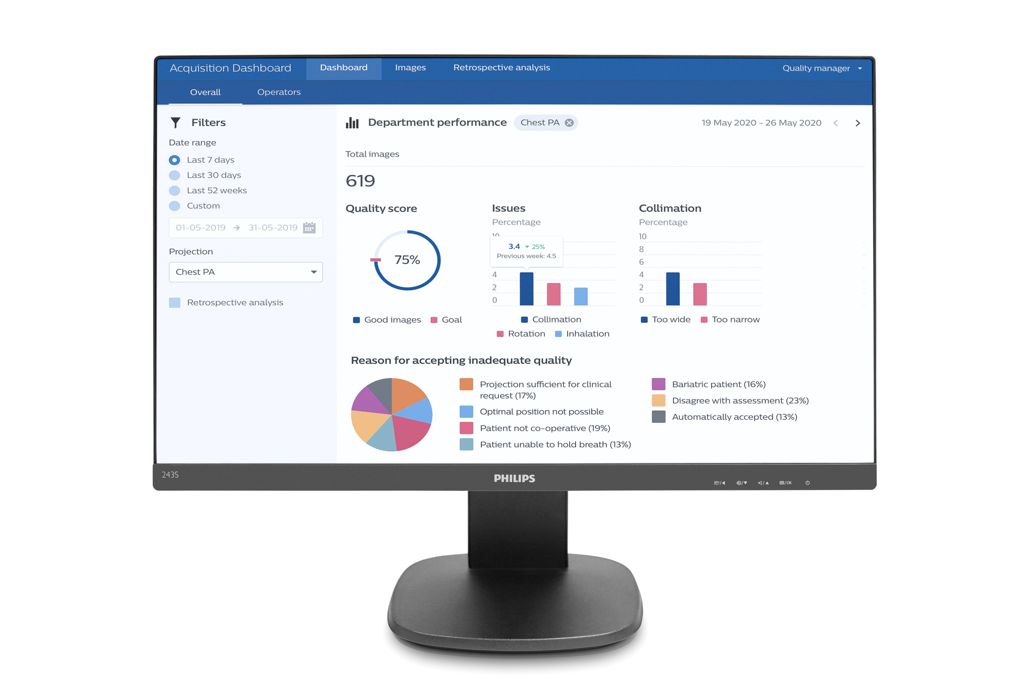

Comprehensive departmental overview
A department-level view with individual report generation provides administrators with valuable metrics to easily identify opportunities for improvement. Constant quality analysis can lead to staff efficiency. Furthermore, also technologists can get access to the dashboard and gather further useful insights in a personalized format.
Requirements and compatibility
To allow instant support the solution requires remote service connection during the installation and beyond.

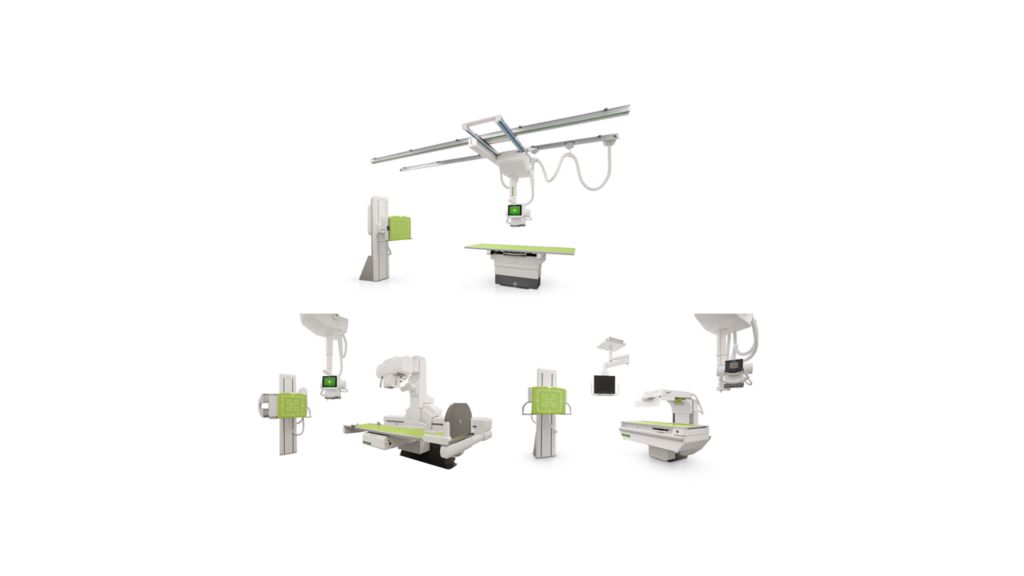

As a departmental solution of the Philips installed base, one Radiology Smart Assistant engine can be connected to up to six modalities in total. Therefore, it is available as an option for new Philips premium X-ray systems, including DigitalDiagnost C90, ProxiDiagnost N90 and CombiDiagnost R90, or as a retrofit for existing Philips DR and DRF systems: Philips DigitalDiagnost Rel 3.1 and above, Philips ProxiDiagnost N90 Rel 1.0.x and above, Philips CombiDiagnost R90 Rel 1.0.x and above.
Specifications
- Ambient Conditions
- Temperature
- +15 to +35 °C
- Relative Humidity
- 30 % to 75 % (non-condensing)
- Security and Privacy
- Security Features
- HTTPS SECURE DICOM (smart engine server only)
- Programs
- Windows Firewall, Windows Defender BitLocker (smart engine server only)
- Disaster Recovery
- Data Durability
- RAID1 storage on server & SFTP interface for export of full back-up
- Remote service
- Secure Service Connection
- VPN connection to Philips RSN or SSL tunnel through standard gateway
- Smart Engine Server
- Operating System
- Windows 10
- Size
- H: 15.2" (386 mm) W: 6.65" (169 mm) D: 17.5" (445 mm)
- CPU
- 8 cores, 3.9 GHz
- Memory
- 32 GB
- Touch UI
- Operating System
- Windows 10
- Display & Size
- 10.1”: 1280x800 pixel H: 7.6" (193 mm) W: 1.1" (28 mm) D: 10.63" (270 mm)
- CPU
- 1.92 GHZ
- Memory
- 4 GB
