Radiography 7000 M

Premium mobile radiography solution
Mobile X-ray
Radiography 7000 M is a premium mobile radiography solution designed to offer enhanced care and improved operational efficiency. Its advanced design provides exceptional system availability, easy navigation and effortless positioning for fast and effective patient care. Advanced solutions automate many routine tasks. Radiography 7000 M’s lithium-ion battery allows fast charging and long-lasting power to keep your system ready to use throughout your shift and offers the ability to see more patients per battery charge.

Features

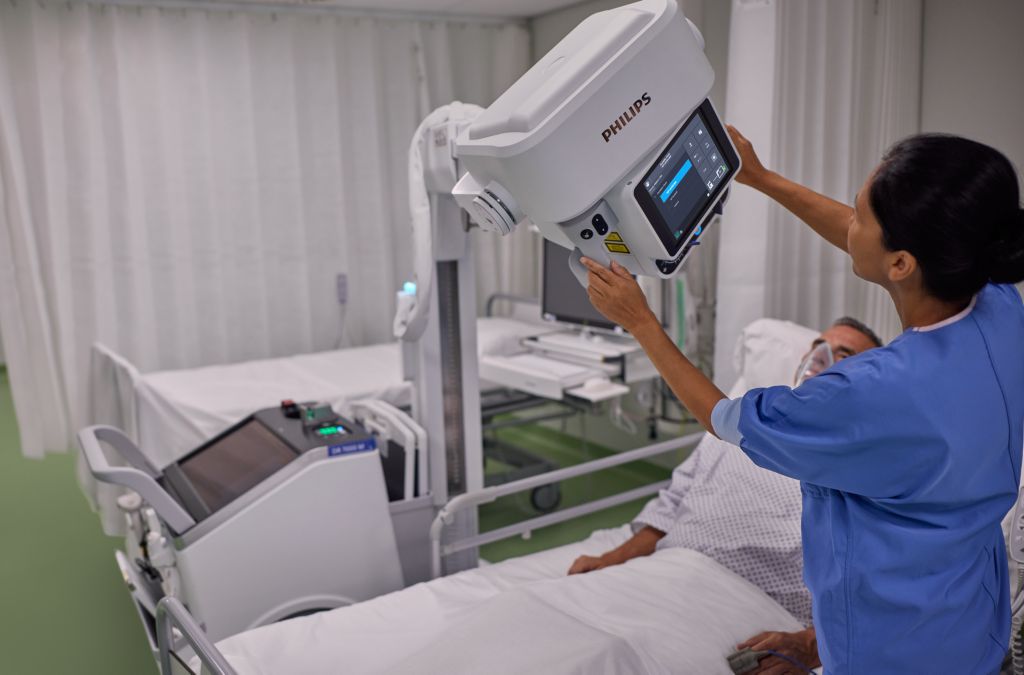

Advanced Eleva Tube Head
Radiography 7000 M offers the innovative 8.4 inch Eleva Tube Head to ease and speed the workflow process like our premium fixed radiography solutions.Precise collimation is supported through dual shutter control for exceptional flexibility in tight spaces. And built-in automatic spectral filters plus an estimated Dose Area Product (DAP) meter for X-ray dose management further enhance your workflow.
Advanced Eleva Tube Head

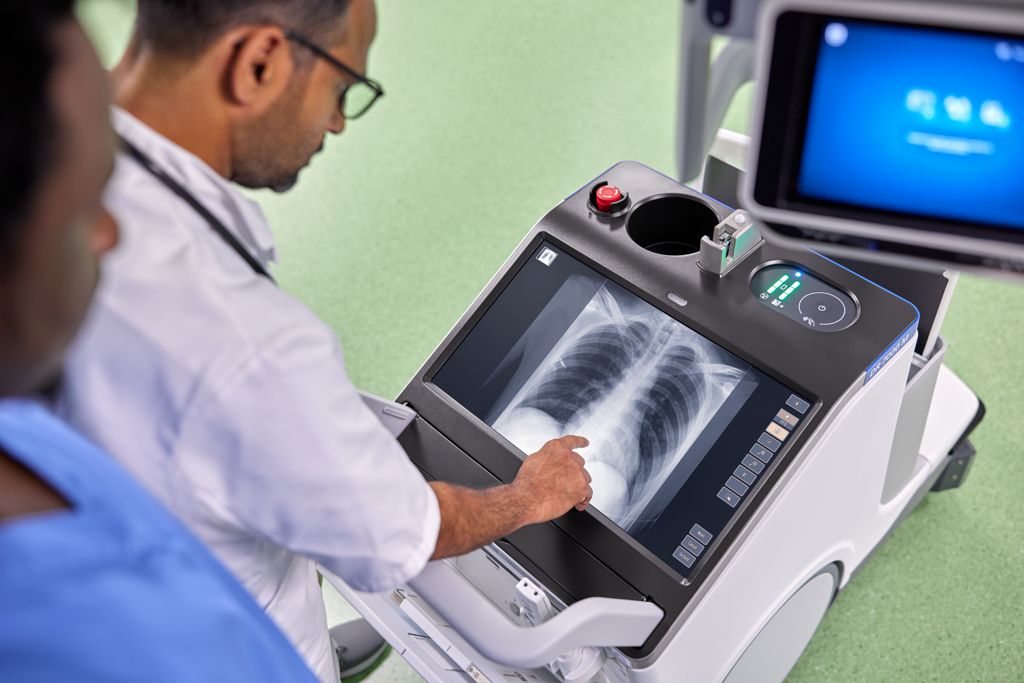

Images within seconds
Radiography 7000 M is equipped with our highly regarded UNIQUE 2 image processing technology for superb full resolution image results within seconds. You can review the image on the 21.5-inch DICOM monitor and then immediately send it via the hospital network to PACS.
Images within seconds
Exceptional imaging with monoblock
Radiography 7000 M is equipped with a monoblock design, which is compact and fits easily into tight spaces like NICU. The tube technology offers a fast exposure rise and drop time, which helps in reducing motion artifacts, thereby providing exceptional image quality.
Exceptional imaging with monoblock
Specifications
  • Mobile unit
    Dimensions
    (l x w x h): 1340mm (52.76 in), 540mm (21.3in), 1285mm (50.6in)
    Wheel base
    641
    Motorization
    5
    Tube column rotation
    317
  • Generator
    mAs range
    0.1 - 500
    mA range
    10 -500
    Exposure times
    0.001 - 1.25
  • Eleva user interface
    Monitor
    21.5 '' monitor color display with DICOM GSDF compliance
Disclaimer
(1) As compared to Radiography 5700 M — MobileDiagnost wDR.
(2) Test Condition: 80 kV, 400 mA, 5 msec/30 sec interval, system moving in maximum velocity of 5.5 km/h for 4 hours.
(3) Validated by 15 out of 15 technologists in a test environment.
(4) White paper “Grid-less imaging with SkyFlow: Time savings and workflow improvements” 4522 991 11471 * Jun 2015.
(5) Approved Claims Sheet – ID: D001497768.
